What Are the Key Differences Between Horizontal and Vertical Fire Pumps?
Nov 11, 2024
Share:
Horizontal and vertical fire pumps differ primarily in their configuration, installation requirements, and suitability for specific applications. Here’s a breakdown of the key differences:
1. Configuration and Design

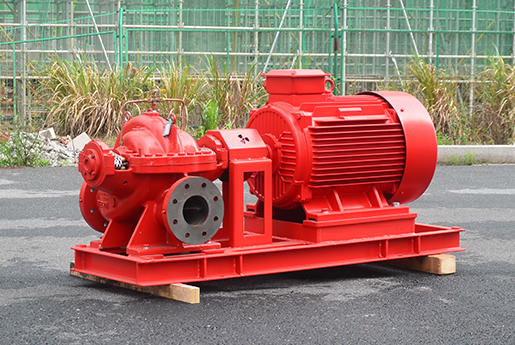

- Horizontal Fire Pumps: These pumps have a horizontal shaft and are typically installed on a base plate with the motor and pump side by side. They often require more floor space due to their length.
- Vertical Fire Pumps: These pumps have a vertical shaft with the motor mounted directly above the pump. They are tall and slender, which makes them space-efficient.
2. Space Requirements
- Horizontal Pumps: Ideal for installations with ample horizontal floor space.
- Vertical Pumps: Preferred in settings where floor space is limited. Their vertical arrangement makes them suitable for tight spaces, particularly in high-rise buildings or basements.
3. Installation
- Horizontal Pumps: Easier to install and maintain because components are accessible at ground level. However, they may require precise alignment to avoid vibration.
- Vertical Pumps: Installation can be more complex, especially in confined spaces. These pumps often have a long shaft extending down into the water source, which may require special alignment and shaft support.
4. Performance and Applications
- Horizontal Pumps: Generally, more stable at high flow rates and are often chosen for higher capacity applications.
- Vertical Pumps: Suitable for applications where the water source is below the pump, such as in a pit or reservoir. They’re often used in high-rise buildings or underground water tanks where the pump needs to draw water from below.
5. Cost and Maintenance
- Horizontal Pumps: Typically, they have lower installation and maintenance costs due to easier accessibility and simpler design.
- Vertical Pumps: They may incur higher maintenance costs, especially if the long vertical shaft needs servicing or alignment adjustments.
Summary Table
| Feature | Horizontal Fire Pump | Vertical Fire Pump |
|---|---|---|
| Orientation | Horizontal shaft | Vertical shaft |
| Space Requirement | Requires more floor space | Space-efficient for narrow areas |
| Installation | Easier to install and maintain | Requires specific alignment, more complex |
| Ideal Application | High capacity, stable applications | High-rise, underground water sources |
| Maintenance Cost | Lower | Higher (due to shaft alignment, etc.) |
Each type has its advantages depending on the installation setting, required performance, and space constraints.
