What are the fire pump performance curves, and how are they used?
May 29, 2024
Share:

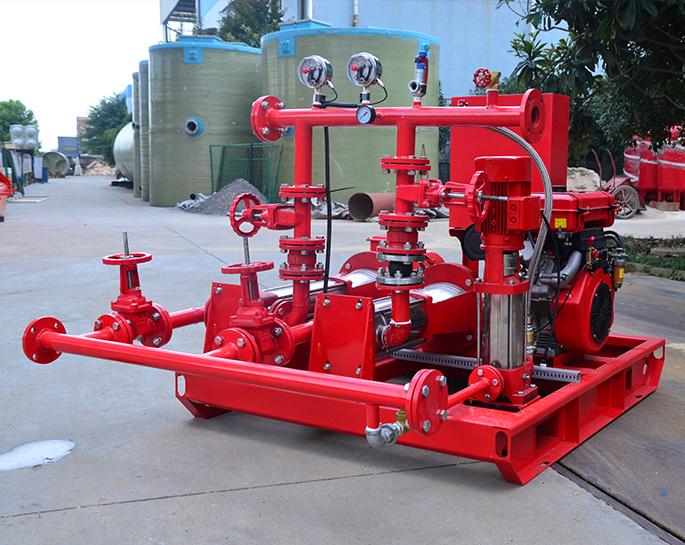

Fire pump performance curves are graphical representations of a fire pump's performance characteristics, showing the relationship between the flow rate (usually in gallons per minute or GPM) and the pressure (measured in pounds per square inch or PSI) that the pump can generate. These curves are crucial for understanding how a fire pump will perform under different conditions and are used to ensure that the pump meets the specific requirements of a fire protection system.
### Components of Fire Pump Performance Curves
1. **Flow Rate (GPM):** This is typically plotted on the horizontal axis (X-axis). It represents the volume of water the pump can deliver over time.
2. **Pressure (PSI):** This is plotted on the vertical axis (Y-axis). It indicates the pressure the pump can generate at a given flow rate.
3. **Efficiency Curves:** These may also be included in the performance curves, showing the efficiency of the pump at different flow rates.
4. **Horsepower Requirements:** Some curves include lines showing the horsepower required at different points on the curve.
5. **Net Positive Suction Head Required (NPSHr):** This may also be included to indicate the suction pressure needed to avoid cavitation at various flow rates.
### Types of Curves
- **Head vs. Flow Curve:** Shows the relationship between the pump head (pressure) and the flow rate.
- **Efficiency Curve:** Indicates how efficient the pump is at different flow rates.
- **Power Curve:** Illustrates the power required to operate the pump at various flow rates.
### How They Are Used
1. **System Design:** Engineers use performance curves to select a pump that can meet the specific flow and pressure requirements of a fire protection system. By matching the system's needs with the pump's performance, they ensure the pump can deliver adequate water pressure and volume during a fire emergency.
2. **Pump Selection:** Performance curves help in comparing different pumps to find the best fit for a given application. Factors like desired flow rate, pressure, and efficiency are considered to choose the most suitable pump.
3. **Troubleshooting:** Performance curves can be used to diagnose issues with an existing pump. By comparing the actual performance with the expected performance based on the curve, issues like wear, impeller damage, or other inefficiencies can be identified.
4. **Regulatory Compliance:** Many fire protection systems must meet specific regulatory standards. Performance curves ensure that the selected pump will meet these standards, providing the required performance under all conditions.
### Example of Using a Performance Curve
Imagine you have a fire protection system requiring a flow rate of 500 GPM at a pressure of 100 PSI. You would use the performance curve to find a pump that can deliver these requirements.
- **Locate 500 GPM on the X-axis.**
- **Move vertically to intersect the pump curve.**
- **At this intersection, move horizontally to see the corresponding pressure on the Y-axis.**
- **Ensure this point is at or above 100 PSI.**
If the curve shows that the pump delivers 100 PSI or more at 500 GPM, it meets the system's requirements. Additionally, you would check efficiency and power requirements at this point to ensure the pump operates efficiently and within power constraints.
### Conclusion
Fire pump performance curves are essential tools for designing, selecting, and maintaining fire protection systems. They provide a detailed view of how a pump will perform under various conditions, ensuring the system can deliver the necessary water flow and pressure during emergencies.
