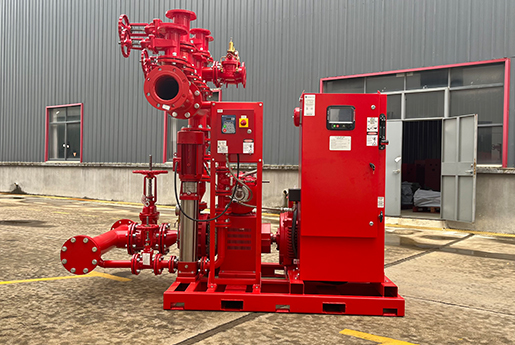

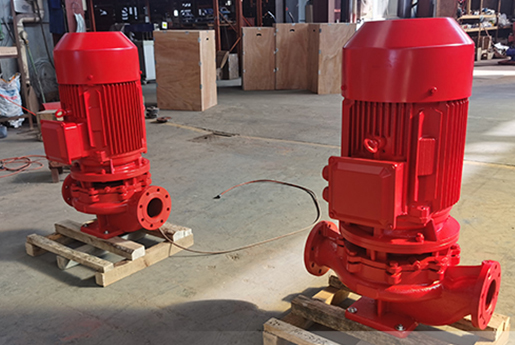

Vertical multistage fire pumps are designed specifically for fire protection applications, where reliability, efficiency, and performance are of utmost importance. These pumps are used to deliver pressurized water for fire suppression systems in various settings, including commercial buildings, industrial facilities, and residential complexes. Here are some of the main features and characteristics of vertical multistage fire pumps:

Multistage Design: Vertical multistage fire pumps consist of multiple impellers stacked on a common shaft. Each impeller adds pressure to the water as it passes through, allowing the pump to generate higher pressures efficiently. This design enables the pump to deliver the required high pressure needed for effective fire suppression.

Vertical Orientation: These pumps are designed to be installed vertically, which helps save space compared to horizontal pumps. Vertical installation is particularly useful in applications where floor space is limited.

Efficiency: The multistage design of these pumps contributes to higher efficiency levels. Each impeller stage adds energy to the water, resulting in more effective pressure boosting while maintaining energy efficiency.

High Pressure: Vertical multistage fire pumps are capable of delivering high discharge pressures, making them suitable for fire protection systems that require significant pressure to overcome pipe friction and reach elevated locations.

Reliability: Fire pumps are critical for life safety, so reliability is paramount. Vertical multistage pumps are known for their dependable performance and durable construction. Their design reduces the risk of cavitation, which can be detrimental to pump efficiency and longevity.

Balanced Hydraulic Operation: The design of these pumps often includes hydraulic balancing to minimize axial thrust and vibration. This enhances the stability of the pump during operation, reducing wear on components and ensuring longer service life.

Compact Footprint: The vertical design allows for a smaller footprint, which can be advantageous when space is limited, especially in retrofit or space-constrained installations.

Easy Maintenance: Many vertical multistage fire pumps are designed for easy maintenance. Access to the pump's internals is facilitated by removable casing covers or split-case designs, making inspection and maintenance more convenient.

Materials of Construction: Fire pumps are typically constructed from materials that meet fire protection standards and provide corrosion resistance. Common materials include cast iron, bronze, stainless steel, and other alloys depending on the application and the type of fluids being pumped.

Electronic Control Options: Modern vertical multistage fire pumps often come equipped with advanced electronic control panels. These panels can provide real-time monitoring, diagnostics, and remote operation, enhancing system reliability and ease of management.

Compliance with Standards: Fire pumps and fire protection systems are subject to various standards and codes, such as NFPA 20 (National Fire Protection Association) and local regulations. Vertical multistage fire pumps are designed to meet or exceed these standards to ensure reliable and compliant operation.

When selecting a vertical multistage fire pump for a specific application, it's essential to consider factors such as required pressure, flow rate, system design, available space, and regulatory requirements. Consulting with experts in fire protection engineering and equipment selection can help ensure that the chosen pump meets the safety and performance needs of the fire protection system.

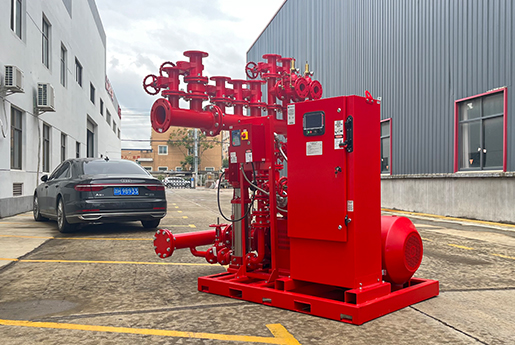

In a fire protection system, having both a master fire pump and a backup (or secondary) fire pump is essential to ensure reliability and redundancy in case of primary pump failure. The master pump is the primary pump responsible for maintaining the required water pressure for fire suppression, while the backup pump serves as a fail-safe option in case the master pump becomes unavailable. Switching between the master and backup fire pumps should be designed to happen seamlessly to ensure continuous fire protection. Here's how the switching process typically works:

Normal Operation (Master Pump Active):

During normal operation, the master fire pump is active and provides the required water flow and pressure for the fire protection system.
Water pressure sensors and/or flow sensors continuously monitor the system to ensure that the desired pressure is maintained.
Master Pump Failure Detection:

If the water pressure drops below the desired level due to a master pump failure or other issues, the system detects this and initiates a signal indicating a pump failure.
Automatic Transfer Switch (ATS):

An Automatic Transfer Switch (ATS) is a critical component in fire pump switching. It automatically detects the master pump failure and triggers the switch to activate the backup pump.
The ATS may also have built-in delay mechanisms to ensure that the backup pump doesn't start immediately to avoid false triggering due to momentary pressure fluctuations.
Backup Pump Activation:

When the ATS determines that the master pump has failed, it sends a signal to start the backup pump.
The backup pump's motor starts, and the pump begins providing water flow and pressure to the fire protection system.
Pressure Restoration and Monitoring:

The backup pump operates until the desired water pressure is restored within the fire protection system.
Pressure sensors and flow sensors continue to monitor the system to ensure that the backup pump is maintaining the required pressure.
Master Pump Restoration:

Once the master pump issue has been addressed (e.g., repairs, maintenance), it can be manually or automatically reactivated.
The ATS can be programmed to switch back to the master pump once it's confirmed that the master pump is operational again.
Manual Override:

In some systems, there might be a manual override option to switch between the master and backup pumps. This can be useful in situations where manual intervention is preferred.
It's important to note that the switching mechanism and procedures can vary based on the specific fire protection system design, manufacturer recommendations, and local regulations. Fire pump systems are typically designed to meet the requirements of the National Fire Protection Association (NFPA) standards, which provide guidelines for designing, installing, and maintaining fire pump systems to ensure their reliability and effectiveness in protecting life and property.

Regular testing, maintenance, and training are crucial to ensure that the master and backup fire pumps, as well as the switching mechanisms, are functioning as intended. Fire protection professionals and facility managers should work closely with experts to design and maintain a fire pump system that meets safety standards and regulatory requirements.

Starting a diesel engine fire pump involves a specific procedure to ensure reliable and safe operation. Here's a general step-by-step guide on how to start a diesel engine fire pump:

Preparation and Safety Check:

Ensure that the pump, engine, and all components are in good condition and have undergone routine maintenance as recommended by the manufacturer.
Confirm that the pump's suction and discharge valves are in the correct positions and that the pump is properly primed.
Ensure that the fuel tank has sufficient fuel and that the battery is charged.
Engine Pre-Start Checks:

Check the engine oil level and ensure it's at the recommended level.
Check the coolant level and ensure it's within the recommended range.
Check the air filter and clean or replace it if necessary.
Make sure that the engine's emergency shutdown devices are in the "run" position.
Control Panel Setup:

Set the engine control panel to the "OFF" or "STOP" position.
Set the throttle control to the "LOW IDLE" position.
Battery and Ignition:

Turn on the ignition switch.
If the engine has a glow plug or a preheating system, activate it to ensure easier starting, especially in cold conditions.
Start the Engine:

Turn the engine control panel to the "START" position. The engine should crank and start. If the engine doesn't start immediately, avoid excessive cranking to prevent damage to the starter motor.
Monitor Engine Start:

Observe the engine for any unusual sounds or signs of issues during startup.
Once the engine starts, gradually increase the throttle setting to the desired operating speed. This may involve moving the throttle control from "LOW IDLE" to the appropriate operating speed.
Monitor Parameters:

Keep an eye on the engine temperature, oil pressure, and other vital parameters. Ensure they stabilize within safe operating ranges.
Pump Operation:

Once the engine is running smoothly and parameters are stable, engage the pump's clutch or drive system to start the pump.
Monitor the pump's pressure gauges and ensure that water is being pumped as expected.
Emergency Shutdown and Shutdown:

Familiarize yourself with the emergency shutdown procedure in case of any unforeseen issues.
To shut down the engine and pump, gradually reduce the throttle setting and return it to the "LOW IDLE" position.
Turn the engine control panel to the "OFF" or "STOP" position.
Post-Operation Inspection:

After the pump has been used or tested, perform a post-operation inspection of the engine, pump, and components. Look for any signs of leaks, abnormal wear, or damage.
Always follow the manufacturer's guidelines and the specific procedures outlined in the equipment's manual for starting and operating the diesel engine fire pump. Safety is paramount, so ensure that the pump is operated by trained personnel who are familiar with the equipment and its operational procedures.

Vibration in a diesel engine fire pump can result from various factors. Identifying the cause of vibration is crucial as excessive or uncontrolled vibration can lead to equipment damage, decreased efficiency, and potential safety hazards. Here are some potential causes of vibration in a diesel engine fire pump:

Imbalance: An imbalance in rotating components such as the engine crankshaft, fan, or pump impeller can lead to uneven forces during operation, causing vibration. Imbalances might arise due to manufacturing defects, wear and tear, or improper maintenance.

Misalignment: Misalignment between the engine, pump, and other components can cause excessive vibration. Incorrect alignment puts additional stress on the bearings, shafts, and couplings, leading to increased vibration levels.

Worn or Damaged Bearings: Bearings that are worn out or damaged can result in uneven movement and generate vibration. This can be due to lack of lubrication, contamination, or normal wear over time.

Loose Fasteners: Loose bolts, nuts, or other fasteners connecting various components of the engine and pump can lead to vibrations as the parts move slightly out of position during operation.

Harmonic Resonance: If the natural frequency of the engine or pump coincides with the operating speed, harmonic resonance can occur, leading to amplified vibrations. This is more likely when the equipment has been modified or is operating at a different speed than originally designed.

Mechanical Wear: Wear and tear of components over time can lead to an increase in vibration levels. This could include worn belts, gears, or other moving parts.

Cavitation: In a pump, cavitation occurs when the pump's impeller generates low-pressure areas that cause vapor bubbles to form and collapse in the fluid. This can lead to increased vibration and potential damage to the impeller.

Fluid Imbalance: Irregular flow of fluid through the pump due to blockages, obstructions, or improper suction conditions can cause vibrations. Uneven flow distribution can lead to unbalanced forces within the pump.

Excessive Load: Operating the pump beyond its design capacity or pushing it to work under extreme conditions can result in increased vibration due to the added stress on components.

Structural Issues: Weaknesses or defects in the foundation, mounting, or support structure of the engine and pump can amplify vibrations, leading to resonances.

Combustion Issues: Diesel engines with combustion irregularities or issues with fuel injection timing can generate uneven forces during the combustion cycle, contributing to vibrations.

To identify the specific cause of vibration in a diesel engine fire pump, a comprehensive inspection and analysis are necessary. This might involve visual inspection, vibration analysis using specialized equipment, checking alignment, examining components for wear and damage, and reviewing maintenance records. Once the cause is identified, appropriate corrective actions can be taken, such as balancing rotating parts, aligning components, replacing worn bearings, and addressing other issues. Regular maintenance and monitoring are essential to prevent vibration-related problems and ensure the optimal performance and safety of the equipment.

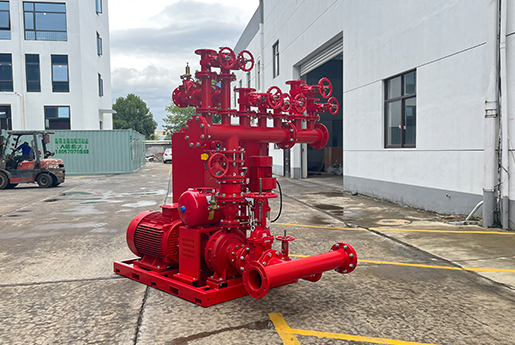

Installing a fire pump properly is essential to ensure its reliability and effectiveness during emergency situations. Below is a general guide for fire pump installation, but always refer to the manufacturer's specific installation instructions and any relevant local codes and regulations:

Pre-Installation Preparation:

Review the manufacturer's installation manual thoroughly.
Verify that the selected location for the pump meets local regulations and fire protection requirements.
Ensure that all required permits and approvals are obtained.
Foundation and Mounting:

Prepare a solid and level foundation for the pump and motor assembly.
Follow the manufacturer's recommendations for mounting and aligning the pump and motor.
Use appropriate vibration isolation pads or mounts to reduce vibrations and noise transmission.
Electrical Connections:

Ensure that the electrical supply meets the pump's voltage and current requirements.
Install proper electrical wiring, conduit, and connections according to local electrical codes.
Include necessary safety devices such as overload protection and disconnect switches.
Piping and Valves:

Install proper suction and discharge piping according to the manufacturer's recommendations and local codes.
Use the correct pipe sizes to ensure proper flow rates.
Include isolation valves, check valves, and other required components.
Ensure that the suction line is free from debris and blockages.
Suction Source:

Connect the pump's suction line to an appropriate water source, such as a water storage tank or a public water supply.
Ensure that the water source meets the required standards for flow and pressure.
Discharge System:

Connect the pump's discharge line to the fire protection system, which may include sprinklers, standpipes, and hydrants.
Include the necessary valves, pressure gauges, and other components.
Cooling and Ventilation:

Ensure that the pump room or installation area is adequately ventilated to prevent overheating.
If the pump is water-cooled, ensure proper water circulation and cooling system installation.
Alignment and Coupling:

Align the pump and motor shafts accurately according to the manufacturer's specifications.
Install couplings and guards as recommended by the manufacturer.
Testing and Commissioning:

Before final installation, perform hydrostatic and functional tests to ensure the pump's proper operation.
Conduct flow tests to verify the pump's performance meets required specifications.
Safety and Signage:

Ensure the installation area is well-marked with appropriate signage indicating the location of the fire pump and its controls.
Comply with safety regulations, including lockout/tagout procedures and electrical safety measures.
Documentation and Record Keeping:

Maintain detailed records of the installation process, including drawings, test results, and any adjustments made.
Keep manufacturer's manuals and documentation for future reference.
Training:

Train relevant personnel in the operation, maintenance, and emergency procedures related to the fire pump.
Final Inspections:

Schedule a final inspection with relevant authorities to ensure the installation meets all codes and regulations.
Remember that fire pump installation is a critical process that requires careful attention to detail and adherence to safety and regulatory standards. It's advisable to work with qualified professionals who have experience in fire pump installation to ensure the system functions reliably when needed.

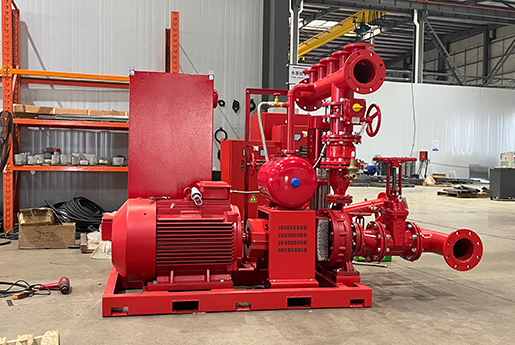

Troubleshooting fire pumps involves identifying and resolving issues that affect their performance and functionality. Here's a step-by-step guide to troubleshooting fire pumps:

Gather Information:

Collect relevant information, including the pump's specifications, maintenance history, and any recent changes in operation.
Identify Symptoms:

Define the specific symptoms or issues the pump is experiencing, such as abnormal noise, vibration, low pressure, or failure to start.
Safety Precautions:

Ensure safety protocols are in place before troubleshooting. Disconnect power sources and follow appropriate lockout/tagout procedures.
Start with Basics:

Check for obvious issues such as power supply, circuit breakers, and switches. Make sure the pump is receiving power.
Check Indicator Lights:

If the pump has indicator lights or alarms, observe them for any abnormal indications.
Inspect Mechanical Components:

Check for misalignment, loose bolts, and worn parts. Inspect bearings, couplings, impellers, and seals for damage or wear.
Evaluate Electrical System:

Inspect wiring, connections, and control panels for damage, corrosion, or loose connections.
Check for proper voltage levels and phase balance.
Monitor Vibration:

If applicable, use vibration monitoring equipment to assess vibration levels. Abnormal vibration can indicate misalignment or mechanical issues.
Cavitation Check:

Inspect the suction strainer and suction line for blockages that could cause cavitation.
Verify that the suction tank is properly filled and vented.
Check Piping:

Inspect suction and discharge piping for leaks, blockages, and proper valve positions.
Review System Controls:

Verify that pressure switches, relief valves, and control settings are functioning correctly.
Review Recent Changes:

If any changes were made to the system or its components recently, investigate whether they could be causing the issue.
Review Maintenance Records:

Check the maintenance records for recent maintenance activities or repairs that might be related to the problem.
Examine Alarm Logs:

If the pump has an alarm system, review the alarm logs to identify any recurring issues or patterns.
Consult Manuals and Documentation:

Refer to the pump's manuals and documentation for troubleshooting guidelines provided by the manufacturer.
Vibration Analysis:

If vibrations are present, conduct a detailed vibration analysis to determine the source and severity of the vibration.
Contact Manufacturer or Expert:

If you're unable to identify the problem, consider reaching out to the pump manufacturer's technical support or a qualified pump service expert.
Take Corrective Action:

Based on your findings, take the necessary corrective actions, which may include repairs, replacements, adjustments, or further investigation.
Testing and Monitoring:

After making repairs, conduct tests to ensure the pump is functioning as expected.
Implement a monitoring plan to track the pump's performance and identify any recurring issues.
Remember that troubleshooting can vary depending on the specific pump model, system configuration, and the nature of the problem. It's important to approach troubleshooting systematically and avoid taking risks that could compromise safety or exacerbate the issue.
