violent vibrating pump

It is possible to automatically rotate the rotor without obstacles, or the coupling is not well combined, and the bearing is worn out; it can also be rotated all loose, broken; or maybe it is because the pipe support is not strong, etc. Discern, repair, reinforce, to cause change.

Leaks or ventilation ducts

It can be used as a bolt that is not tightened tightly. If the leakage is not serious, the lime slurry caught in the center of the fire pump lime can be ventilated or seeped or mixed with tar. For temporary repairs, apply some damp mud or a soft towel. If you're leaking in the joints, then tighten the bolts by hand. Leakage mainly has to be disassembled from a new one.

Because the total pressure is too tight, the automatic rotor can be unobstructed, the fire pump or coupling is not well combined, and the bearings are worn out; Discern, repair, reinforce, to cause change.

Frozen water cannot enter the material, or the nominal protection of the shaft. Appropriate aggregate, clearing measures such as seal pipe obstruction can be taken. Total wear must be changed to a new one. The butter of the penetration unit, in order for the slang to be staggered, this can reduce the penetration. After the first circle is installed, the gland should always be tightened to adjust the thickness.

The fire pump does not absorb or does not drain the pump. The cause of the fire pump is stuck for the bottom valve, the level of filtered water is too high, all the silts, the fire pump is water-absorbing or water-permeable, and the impeller channel can be blocked by turning. It can be distinguished that the bottom valve is repaired, the blockage is eliminated, the steering is correct, the impeller is cleaned and other measures are taken to solve the problem.

The long-term operation of the fire pump puts a lot of pressure on the equipment, especially under the condition of continuous large flow, more attention should be paid to the maintenance and maintenance of the equipment. So what are the maintenance rules for fire pumps?

1. The long-term operation of the stabilized fire pump requires a certain bearing capacity. It is forbidden for the fire pump to continue to operate for a long time under the condition of cavitation and large flow, and the equipment motor is in the state of excessive flow for a long time.

2. Regularly check the tightness of the bolts at the joints of the fire pump installation. Loose bolts will cause severe vibration during operation of the equipment and affect normal use. At the same time, it is forbidden to start the fire pump in the dry grinding state, otherwise the damage to the mechanical seal will be serious.

3. It must be used within the specified working conditions of the fire pump, and regularly check the motor flow value of the fire pump to see if it is overloaded. Before the equipment is started, the electric motor pump can be rotated a few times to prevent the equipment from suddenly starting and causing parts to break and break.

4. The working temperature of the bearing is around 50°C, so a lubricating grease with good heat resistance and waterproof should be selected. Every time the stabilized fire pump runs for 500 hours, it needs to add lubricating oil. It is best to choose a suitable lubricating oil, which is heat-resistant and waterproof, and add it to the bearing part of the pump. When adding lubricating oil, keep it clean and free of particles, which can reduce the wear and tear of the fire pump during operation.

5. Mechanical equipment such as fire pumps are prone to wear and tear after long-term operation. It is recommended to arrange a thorough inspection every year. For severely worn bearings and vulnerable parts, disassemble and replace them if necessary.

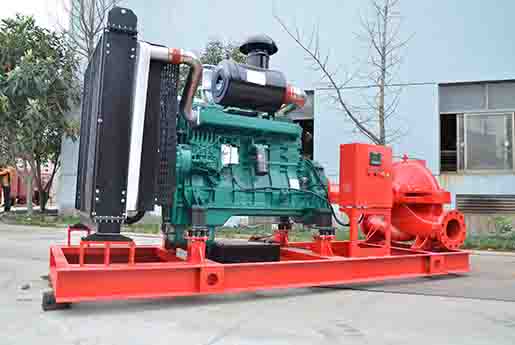

Tip 1: Grinding is running-in. This is the basis for extending the service life of the engine. Whether it is a new engine or an overhauled engine, it must be run-in according to the regulations before it can be put into normal operation.

Secret 2: Purification means cleansing of oil, water, air and body. If the diesel and gasoline are impure, the precise matching body will be worn out, and the fitting gap will increase, resulting in oil leakage, oil dripping, lower oil supply pressure, larger gap, and even serious failures such as oil circuit blockage, shaft holding, and tile burning. ;If the air contains a lot of dust, it will accelerate the wear of the cylinder liner, piston and piston ring; if the cooling water is impure, the cooling system will be blocked by scale, which will hinder the heat dissipation of the engine, the lubrication condition will become poor, and the body will wear seriously; If the surface is not clean, the surface will be corroded and the service life will be shortened.

Tip 3: Feet are oil feet, water feet, and air feet. If the oil supply is insufficient or interrupted, the engine lubrication will be poor, the engine body will be severely worn and even burnt; if the cooling water is insufficient, the engine temperature will be too high, the power will drop, the wear will increase, and the service life will be shortened; if the air supply is not timely or interrupted , there will be difficulty in starting, poor combustion, power drop, and the engine cannot run normally.

Tip 4: Inspection That is, check the fastening parts frequently. Due to the influence of vibration, shock and uneven load during the use of diesel engines and gasoline engines, bolts and nuts are easy to loosen. The adjusting bolts of each part must be checked to avoid accidents that damage the machine body due to looseness.

Tip 5: Adjustment means that the valve clearance, valve timing, fuel supply advance angle, fuel injection pressure and ignition timing of diesel or gasoline engines should be checked and adjusted in time to ensure that the engine is in good condition, so as to save fuel and prolong the service life .

Secret six: use the engine correctly. Before starting, the lubricating parts such as shafts and bushes should be lubricated. After starting, wait until the water temperature is above 40°C before putting it into operation. Prolonged overloading or low-speed operation is strictly prohibited. Before stopping, unload the load and reduce the speed. After parking in winter, drain the cooling water when the water temperature drops to 50°C.

Observe and check frequently, find faults, eliminate them in time, and do a good job of engine maintenance at ordinary times, so that the machine can always be kept in good running condition. If you have the need to purchase fire pumps, please contact us by phone.

Causes and treatment methods of water pump leakage

1. The installation is too tight

Observe the planes of the dynamic and static rings of the mechanical seal. If there is serious burning, the planes turn black with deep traces, the sealant hardens and loses its elasticity, this is caused by over-tight installation.

Solution: Adjust the installation height. After the impeller is installed, pull out the spring with a screwdriver. The spring has a strong tension. After loosening, it will reset and move a distance of 24 mm.

2. The installation is too loose

Observe the machine seal, the plane of the static ring, there is a very thin scale on the surface, which can be wiped off, and the surface is basically not worn, which is caused by the loss of elasticity and the assembly of the spring, or the axial movement of the motor.

Solution: Adjust the installation height. After the impeller is installed, pull out the spring with a screwdriver. The spring has a strong tension. After loosening, it will reset and move a distance of 24 mm.

3. Poor water quality contains particles. Due to the poor water quality, the medium contains small particles and high hydrochloride content, forming the sealing surface or tension surface of the abrasive mill, causing grooves, grooves and other phenomena.

Treatment: Improve the water pressure or medium and replace the machine seal.

About the maintenance method of the water pump

During the long-term operation of the fire pump, phenomena such as wear of the bearing chamber, bearing position, cracks and rupture of the pump body, pump cavitation and erosion often occur. After the above problems occur, the traditional solution of the enterprise is to repair or repair after brush plating, but there are some shortcomings: the thermal stress generated by the high temperature of repair welding cannot be completely eliminated, and it is easy to cause material damage, resulting in bending or breaking of parts; The thermal stress after plating can cause material damage and part fracture. H electroplating is limited by the thickness of the coating, and it is easy to peel off. The above two methods use metal to repair the metal, and the "hard" state cannot be changed. For the hard fit relationship, under the combined action of various forces, it will still cause re-wear.

How to maintain the fire pump is the simplest and most economical repair. It is necessary to prevent damage to the fire pump that prolongs the service life and prolong the service life. Naturally, it saves us money. In order to save costs, our daily maintenance can be like this.

First of all, check whether the oil level is normal and cannot reach the oil mark line on the normal surface. If it is not, we must replenish it in time, but remember one thing, it cannot exceed the amount of the oil quantity indicator line.

Secondly, check the radiator. The water is appropriate. If it is not added in time, the water that needs to be added must be clean water, as long as it is clean water, or tap water is fine. Why not use groundwater, because impurities in groundwater can easily form scales in the water tank, which affects the cooling effect and is also prone to failure. In winter, we drive to preheat the car, add coolant to the car, and the fire pump is no exception. The weather in the north is very cold, so add the coolant to the fire pump according to the actual temperature.

Finally, check the installation of each part of the fire pump, such as whether they are stable, the connection between the screw and the screw, if there is any looseness, tighten the screw in time. To clean the fire pump, soak a canvas or dry cloth and wipe slowly on the body or on surfaces made of grease or dust.


Only when the power is in the normal range can the fire pump be used efficiently. The requirements for the use of pump equipment are relatively strict, and there may not even be a slight leak, otherwise the use of the pump will be adversely affected. I hope that you need to know before using the pump. Remember:

The energizing power should be selected reasonably.

1. Water irrigation treatment Before selecting the power-on power, make sure that the fire pump is turned off, and the water in the pump should be filled to increase the suction, so as to make the pressure difference larger and quickly clean up some acid-base reagents and other pollutants. Make sure to fill the water well.

2. Selection of electrified power The horsepower of the fire pump will be selected according to the size of the pump. Before electrifying the pump, carefully check the electrical power. Once the power is not grasped accurately, it is easy to cause insufficient suction. Therefore, in order to make it have sufficient suction, the power should be selected reasonably. If there is no electricity, the fire pump cannot be started, let alone used. But does it mean that the pump can be used as long as there is electricity? Not necessarily, the pump can only be used if the electrified power is reasonable and the voltage is within the normal range.

1. When installing the water inlet pipe, the horizontal section should be horizontal or upward
Doing so will cause air to accumulate in the water inlet pipe, reduce the vacuum degree of the water pipe and the water pump, reduce the suction head of the water pump, and reduce the water output. The correct way is: its horizontal section should be slightly inclined towards the water source, it should not be horizontal, let alone tilt upward.
2. Many elbows are used on the water inlet pipe
If many elbows are used on the water inlet pipe, it will increase the local water flow resistance. And the elbow should turn in the vertical direction, and it is not allowed to turn in the horizontal direction, so as not to gather air.
3. The water inlet of the water pump is directly connected with the elbow
This will cause uneven distribution of water flow through the elbow and into the impeller. When the diameter of the water inlet pipe is larger than the water inlet of the water pump, an eccentric reducer should be installed. The flat part of the eccentric reducer should be installed on the top, and the inclined part should be installed on the bottom. Otherwise, the air will accumulate, the water output will decrease or the water will not be pumped, and there will be impact noise. If the diameter of the water inlet pipe is equal to that of the water pump inlet, a straight pipe should be added between the water inlet of the water pump and the elbow, and the length of the straight pipe should not be less than 2 to 3 times the diameter of the water pipe.
4. The last section of the water inlet pipe equipped with a bottom valve is not vertical
If installed in this way, the valve cannot close by itself, causing water leakage. The correct installation method is: the bottom section of the inlet pipe with a bottom valve is vertical. If it cannot be installed vertically due to terrain conditions, the angle between the axis of the water pipe and the horizontal plane should be more than 60°.
5. The position of the water inlet of the water inlet pipe is wrong
(1) The distance between the water inlet of the water inlet pipe and the bottom and wall of the water inlet pool is smaller than the diameter of the water inlet. If there is dirt such as mud and sand on the bottom of the pool, if the distance between the water inlet and the bottom of the pool is less than 1.5 times the diameter, it will cause poor water intake or suction of mud and sand debris during pumping, which will block the water inlet.
(2) If the depth of the water inlet of the water inlet pipe is not enough, it will cause vortices on the water surface around the water inlet pipe, which will affect the water inlet and reduce the water output. The correct installation method is: the water depth of small and medium-sized water pumps shall not be less than 300-600mm, and the depth of large-scale water pumps shall not be less than 600-1000mm.
6. The outlet pipe is above the normal water level of the outlet pool
If the water outlet is above the normal water level of the outlet pool, the pump head will be increased, but the flow rate will be reduced. If the water outlet must be higher than the water level of the water outlet due to terrain conditions, an elbow and a short pipe should be installed at the mouth of the pipe to make the water pipe a siphon type and reduce the height of the water outlet.
