Diagnosing faults in fire pumps is crucial to maintain the reliability and effectiveness of fire protection systems. Here are steps you can take to diagnose fire pump faults:

Visual Inspection: Start with a visual inspection of the fire pump system and its components. Look for any obvious signs of damage, leaks, loose connections, or corrosion.

Review Alarm and Event Logs: Fire pump control panels often have logs that record alarms and events. Review these logs to identify any recent issues or patterns of malfunctions.

Check Power Supply: Ensure that the fire pump is receiving the correct power supply. Voltage fluctuations or electrical issues can affect the pump's performance.

Flow and Pressure Testing: Conduct flow and pressure tests to verify that the pump is generating the required flow and pressure according to design specifications. Compare the test results with the original pump curves.

Suction and Discharge Pressures: Monitor suction and discharge pressures during operation. Abnormal pressure readings could indicate issues with cavitation, blockages, or valve problems.

Cavitation Check: Cavitation can damage pump components. Check for signs of cavitation, such as pitting or erosion on impeller blades, by inspecting the pump's interior.

Net Positive Suction Head (NPSH): Evaluate the NPSH available (NPSHa) versus the NPSH required (NPSHr) by the pump. Inadequate NPSH can lead to cavitation.

Seal and Bearing Inspection: Inspect the pump's seals and bearings for wear, leaks, or signs of damage. Damaged seals can cause leaks, while worn bearings can affect pump alignment and performance.

Vibration Analysis: Excessive vibration can indicate misalignment, imbalance, or worn components. Use vibration analysis tools to assess the pump's condition.

Motor Inspection: If the pump is motor-driven, check the motor for overheating, abnormal noise, and signs of wear. Ensure that the motor is running within its design specifications.

Check Valves and Strainers: Inspect and clean suction and discharge check valves and strainers. Blockages can restrict flow and affect pump performance.

Oil and Lubrication: If the pump has lubricated parts, check oil levels and the condition of the lubricant. Inadequate lubrication can lead to component wear.

Pump Priming: Ensure that the pump is properly primed with water before operation. Insufficient priming can lead to cavitation and reduced performance.

System Changes: If there have been changes to the building layout, occupancy, or fire protection requirements, assess whether the pump is still sized appropriately for the new demands.

Expert Consultation: If you're unable to identify the issue or if the fault is complex, consider consulting with experts in fire protection systems or pump maintenance.

Maintenance Records: Review the maintenance records of the pump to see if regular maintenance tasks have been performed according to schedule.

Emergency Start Testing: If permissible, perform an emergency start test to ensure that the pump activates and performs as expected when the fire protection system is activated.

It's important to remember that fire pumps are critical components of life safety systems, and any faults should be addressed promptly to ensure that the system functions as intended during emergencies. Regular maintenance, testing, and monitoring are essential to prevent faults and ensure the reliability of fire pump systems.

The proper sizing of inlet and outlet diameters for centrifugal pumps is crucial to ensure efficient and reliable operation. Here are some key principles to consider when setting the outlet and inlet diameters of centrifugal pumps:

Flow Rate Requirements: The pump's inlet and outlet diameters should be selected based on the required flow rate of the system. The diameter of the impeller and the casing should be designed to handle the desired flow without causing excessive turbulence or cavitation.

Avoiding Cavitation: Cavitation occurs when the pressure within the pump drops to a point where the liquid begins to vaporize, forming bubbles that can implode when they reach higher-pressure regions. Properly sizing the inlet diameter helps prevent cavitation by ensuring that the pump can take in sufficient fluid without creating a vacuum.

Velocity Considerations: The velocity of the fluid entering and leaving the pump is crucial. The inlet velocity should be kept below a certain limit to prevent turbulence and cavitation, while the outlet velocity should be sufficient to maintain a continuous flow without causing excessive friction losses.

NPSH (Net Positive Suction Head) Requirements: The NPSH required by the pump is the minimum pressure required at the inlet to prevent cavitation. The inlet diameter should be designed to maintain the required NPSH, which is specified by the pump manufacturer.

Efficiency and Head: Proper sizing of the impeller and casing diameters helps maintain the pump's efficiency and head (pressure capability). Oversizing or undersizing the impeller and casing can lead to reduced efficiency and performance.

Matching Components: The inlet and outlet diameters should be matched to other system components, such as pipes, valves, and fittings. Smooth transitions between the pump and the piping system help minimize energy losses and turbulence.

Consider System Design: The overall system design, including pipe lengths, bends, and other fittings, should be considered when sizing the inlet and outlet diameters. A holistic approach ensures that the entire system works optimally.

Avoiding Recirculation: The design of the inlet should prevent recirculation of fluid from the outlet back to the inlet. Recirculation can disrupt the pump's performance and efficiency.

Manufacturer Recommendations: Always refer to the pump manufacturer's guidelines and specifications for recommended inlet and outlet diameters. Manufacturers often provide charts, curves, and data to help size the pump components accurately.

Operating Range: The selected inlet and outlet diameters should allow the pump to operate within its specified range of flow rates and pressures. A well-sized pump will perform efficiently across its intended operating range.

Consider Viscosity: If the pumped fluid has high viscosity, such as in some industrial applications, the inlet and outlet diameters should be adjusted to accommodate the fluid's characteristics and ensure proper flow.

Consultation and Simulation: In complex systems or critical applications, it's advisable to consult with experts or use hydraulic simulation tools to ensure that the selected inlet and outlet diameters will result in optimal pump performance.

Ultimately, the goal is to strike a balance between meeting the desired flow and pressure requirements while avoiding issues such as cavitation, recirculation, and energy losses. Properly sizing the inlet and outlet diameters of centrifugal pumps contributes to their efficiency, reliability, and longevity.

It seems like you're asking for an analysis of the reasons behind the shrinkage of a fire pump. Fire pump shrinkage typically refers to a decrease in the performance or efficiency of a fire pump system over time. There could be several reasons for this phenomenon:

Wear and Tear: Fire pumps are mechanical devices that undergo continuous operation and are subject to wear and tear. The moving parts, such as impellers, bearings, seals, and shafts, can degrade over time due to friction and stress, leading to reduced performance.

Corrosion: Fire pumps are often exposed to harsh environments, including moisture, chemicals, and temperature fluctuations. Corrosion can develop on the internal components of the pump, affecting its efficiency and flow capacity.

Cavitation: Cavitation occurs when the pressure of the fluid within the pump drops to a level where the liquid vaporizes and forms bubbles. When these bubbles collapse, they can cause erosion and damage to the pump components, leading to reduced performance and efficiency.

Scaling and Deposits: Over time, minerals and other deposits from the water being pumped can accumulate on the internal surfaces of the pump. This buildup, known as scaling, can restrict flow and impede the pump's ability to generate pressure.

Maintenance Issues: Inadequate or irregular maintenance can contribute to fire pump shrinkage. Lack of proper lubrication, alignment, and timely replacement of worn-out parts can cause the pump to lose efficiency over time.

Design Mismatch: Sometimes, fire pumps might not have been correctly sized or designed for the specific application. If the pump is undersized or not suitable for the required flow and pressure, it may struggle to meet the demands of the system.

Changes in System Demand: If there have been changes in the building layout, occupancy, or fire protection requirements, the original fire pump system might not be sufficient to meet the new demands, leading to a perceived shrinkage in performance.

Electrical or Power Issues: If the fire pump is electrically driven, problems with the power supply, motor, or control systems can affect its performance. Voltage fluctuations, motor degradation, or electrical faults can all lead to reduced efficiency.

Pump Age: Like any mechanical equipment, the performance of a fire pump can naturally decline as it ages. Components might become less efficient or wear out, impacting overall pump performance.

External Factors: Changes in the source water quality, flow rates, or changes in the surrounding environment can impact the pump's efficiency. Changes in the water source can introduce contaminants or alter the properties of the fluid being pumped.

To address fire pump shrinkage, regular maintenance, proper training of personnel, monitoring system performance, and adhering to manufacturer recommendations are crucial. If you're dealing with a specific case of fire pump shrinkage, it's advisable to involve experts in fire protection and mechanical systems to diagnose the issue accurately and propose effective solutions.

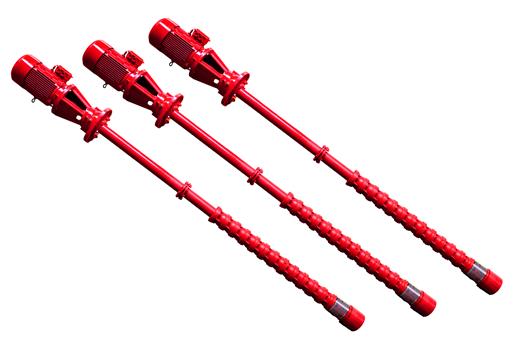

Vertical multistage fire pumps are designed specifically for fire protection applications, where reliability, efficiency, and performance are of utmost importance. These pumps are used to deliver pressurized water for fire suppression systems in various settings, including commercial buildings, industrial facilities, and residential complexes. Here are some of the main features and characteristics of vertical multistage fire pumps:

Multistage Design: Vertical multistage fire pumps consist of multiple impellers stacked on a common shaft. Each impeller adds pressure to the water as it passes through, allowing the pump to generate higher pressures efficiently. This design enables the pump to deliver the required high pressure needed for effective fire suppression.

Vertical Orientation: These pumps are designed to be installed vertically, which helps save space compared to horizontal pumps. Vertical installation is particularly useful in applications where floor space is limited.

Efficiency: The multistage design of these pumps contributes to higher efficiency levels. Each impeller stage adds energy to the water, resulting in more effective pressure boosting while maintaining energy efficiency.

High Pressure: Vertical multistage fire pumps are capable of delivering high discharge pressures, making them suitable for fire protection systems that require significant pressure to overcome pipe friction and reach elevated locations.

Reliability: Fire pumps are critical for life safety, so reliability is paramount. Vertical multistage pumps are known for their dependable performance and durable construction. Their design reduces the risk of cavitation, which can be detrimental to pump efficiency and longevity.

Balanced Hydraulic Operation: The design of these pumps often includes hydraulic balancing to minimize axial thrust and vibration. This enhances the stability of the pump during operation, reducing wear on components and ensuring longer service life.

Compact Footprint: The vertical design allows for a smaller footprint, which can be advantageous when space is limited, especially in retrofit or space-constrained installations.

Easy Maintenance: Many vertical multistage fire pumps are designed for easy maintenance. Access to the pump's internals is facilitated by removable casing covers or split-case designs, making inspection and maintenance more convenient.

Materials of Construction: Fire pumps are typically constructed from materials that meet fire protection standards and provide corrosion resistance. Common materials include cast iron, bronze, stainless steel, and other alloys depending on the application and the type of fluids being pumped.

Electronic Control Options: Modern vertical multistage fire pumps often come equipped with advanced electronic control panels. These panels can provide real-time monitoring, diagnostics, and remote operation, enhancing system reliability and ease of management.

Compliance with Standards: Fire pumps and fire protection systems are subject to various standards and codes, such as NFPA 20 (National Fire Protection Association) and local regulations. Vertical multistage fire pumps are designed to meet or exceed these standards to ensure reliable and compliant operation.

When selecting a vertical multistage fire pump for a specific application, it's essential to consider factors such as required pressure, flow rate, system design, available space, and regulatory requirements. Consulting with experts in fire protection engineering and equipment selection can help ensure that the chosen pump meets the safety and performance needs of the fire protection system.

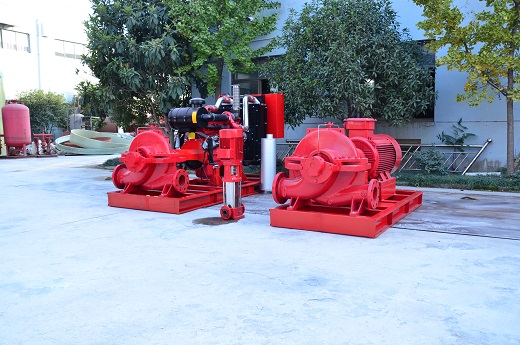

In a fire protection system, having both a master fire pump and a backup (or secondary) fire pump is essential to ensure reliability and redundancy in case of primary pump failure. The master pump is the primary pump responsible for maintaining the required water pressure for fire suppression, while the backup pump serves as a fail-safe option in case the master pump becomes unavailable. Switching between the master and backup fire pumps should be designed to happen seamlessly to ensure continuous fire protection. Here's how the switching process typically works:

Normal Operation (Master Pump Active):

During normal operation, the master fire pump is active and provides the required water flow and pressure for the fire protection system.
Water pressure sensors and/or flow sensors continuously monitor the system to ensure that the desired pressure is maintained.
Master Pump Failure Detection:

If the water pressure drops below the desired level due to a master pump failure or other issues, the system detects this and initiates a signal indicating a pump failure.
Automatic Transfer Switch (ATS):

An Automatic Transfer Switch (ATS) is a critical component in fire pump switching. It automatically detects the master pump failure and triggers the switch to activate the backup pump.
The ATS may also have built-in delay mechanisms to ensure that the backup pump doesn't start immediately to avoid false triggering due to momentary pressure fluctuations.
Backup Pump Activation:

When the ATS determines that the master pump has failed, it sends a signal to start the backup pump.
The backup pump's motor starts, and the pump begins providing water flow and pressure to the fire protection system.
Pressure Restoration and Monitoring:

The backup pump operates until the desired water pressure is restored within the fire protection system.
Pressure sensors and flow sensors continue to monitor the system to ensure that the backup pump is maintaining the required pressure.
Master Pump Restoration:

Once the master pump issue has been addressed (e.g., repairs, maintenance), it can be manually or automatically reactivated.
The ATS can be programmed to switch back to the master pump once it's confirmed that the master pump is operational again.
Manual Override:

In some systems, there might be a manual override option to switch between the master and backup pumps. This can be useful in situations where manual intervention is preferred.
It's important to note that the switching mechanism and procedures can vary based on the specific fire protection system design, manufacturer recommendations, and local regulations. Fire pump systems are typically designed to meet the requirements of the National Fire Protection Association (NFPA) standards, which provide guidelines for designing, installing, and maintaining fire pump systems to ensure their reliability and effectiveness in protecting life and property.

Regular testing, maintenance, and training are crucial to ensure that the master and backup fire pumps, as well as the switching mechanisms, are functioning as intended. Fire protection professionals and facility managers should work closely with experts to design and maintain a fire pump system that meets safety standards and regulatory requirements.

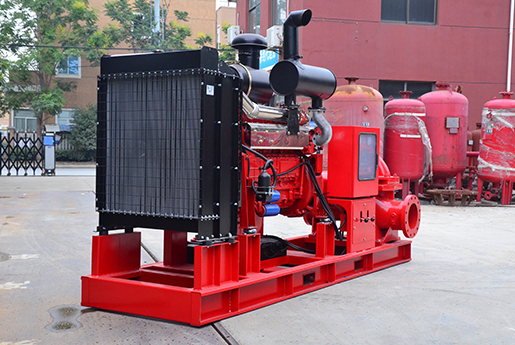

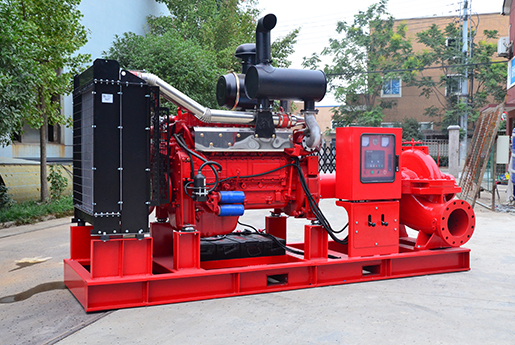

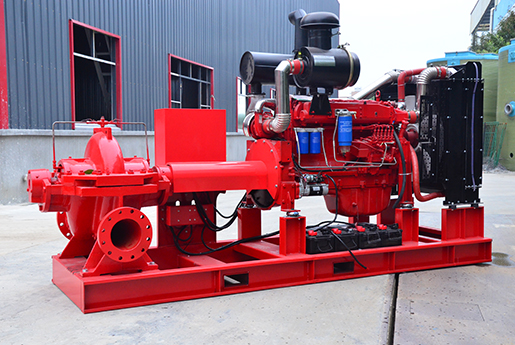

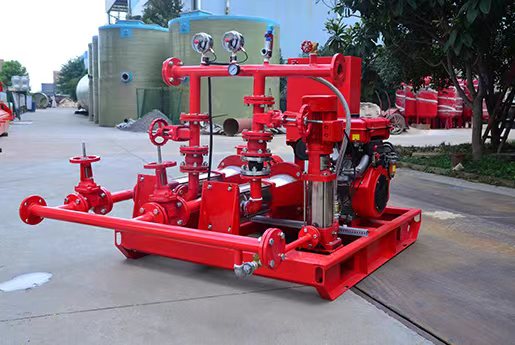

Starting a diesel engine fire pump involves a specific procedure to ensure reliable and safe operation. Here's a general step-by-step guide on how to start a diesel engine fire pump:

Preparation and Safety Check:

Ensure that the pump, engine, and all components are in good condition and have undergone routine maintenance as recommended by the manufacturer.
Confirm that the pump's suction and discharge valves are in the correct positions and that the pump is properly primed.
Ensure that the fuel tank has sufficient fuel and that the battery is charged.
Engine Pre-Start Checks:

Check the engine oil level and ensure it's at the recommended level.
Check the coolant level and ensure it's within the recommended range.
Check the air filter and clean or replace it if necessary.
Make sure that the engine's emergency shutdown devices are in the "run" position.
Control Panel Setup:

Set the engine control panel to the "OFF" or "STOP" position.
Set the throttle control to the "LOW IDLE" position.
Battery and Ignition:

Turn on the ignition switch.
If the engine has a glow plug or a preheating system, activate it to ensure easier starting, especially in cold conditions.
Start the Engine:

Turn the engine control panel to the "START" position. The engine should crank and start. If the engine doesn't start immediately, avoid excessive cranking to prevent damage to the starter motor.
Monitor Engine Start:

Observe the engine for any unusual sounds or signs of issues during startup.
Once the engine starts, gradually increase the throttle setting to the desired operating speed. This may involve moving the throttle control from "LOW IDLE" to the appropriate operating speed.
Monitor Parameters:

Keep an eye on the engine temperature, oil pressure, and other vital parameters. Ensure they stabilize within safe operating ranges.
Pump Operation:

Once the engine is running smoothly and parameters are stable, engage the pump's clutch or drive system to start the pump.
Monitor the pump's pressure gauges and ensure that water is being pumped as expected.
Emergency Shutdown and Shutdown:

Familiarize yourself with the emergency shutdown procedure in case of any unforeseen issues.
To shut down the engine and pump, gradually reduce the throttle setting and return it to the "LOW IDLE" position.
Turn the engine control panel to the "OFF" or "STOP" position.
Post-Operation Inspection:

After the pump has been used or tested, perform a post-operation inspection of the engine, pump, and components. Look for any signs of leaks, abnormal wear, or damage.
Always follow the manufacturer's guidelines and the specific procedures outlined in the equipment's manual for starting and operating the diesel engine fire pump. Safety is paramount, so ensure that the pump is operated by trained personnel who are familiar with the equipment and its operational procedures.
