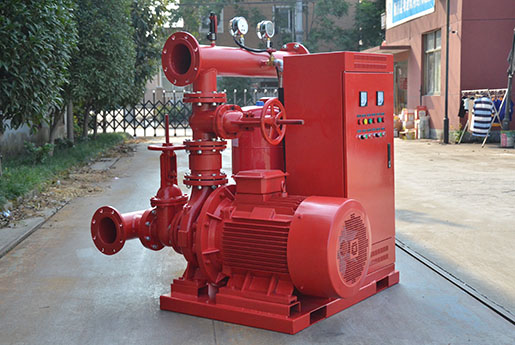

A fire pump is a crucial component of a fire protection system designed to provide adequate water flow and pressure to suppress or control fires in buildings, facilities, or industrial settings. It's commonly used when the available water pressure from the municipal water supply or other sources isn't sufficient to meet the demands of the fire sprinkler system or fire hydrants. Here's how a fire pump works:

Water Source: Fire pumps are typically connected to a dedicated water source, which could be a water storage tank, a dedicated well, a reservoir, or another reliable water supply. The water source should have the capacity to provide the necessary water volume and pressure required by the fire protection system.

Suction Piping and Strainer: The fire pump draws water from the water source through a suction pipe. A strainer is often placed at the end of the suction pipe to prevent debris and large particles from entering the pump and causing blockages.

Inlet Valve: There is usually an inlet valve between the suction pipe and the pump. This valve allows operators to control the flow of water into the pump and shut it off if needed.

Impeller: The heart of the fire pump is the impeller, which is a rotating component with curved blades. The impeller is housed in the pump casing. When the impeller rotates, it creates a centrifugal force that pushes water outward and increases its pressure.

Discharge Piping: The high-pressure water from the impeller is directed into the discharge piping, which distributes the water to the fire protection system, including fire sprinklers, fire hydrants, hoses, and other firefighting equipment.

Pressure Relief Valve: A pressure relief valve is often installed in the discharge piping to prevent excessive pressure buildup in the system. If the pressure surpasses a certain level, the valve opens temporarily to release excess water and reduce the pressure.

Controller: Fire pumps are equipped with controllers that monitor and control the pump's operation. These controllers can automatically start the pump when the pressure drops below a set level, and they can also shut down the pump when the system is pressurized adequately.

Jockey Pump: In some systems, a jockey pump is used to maintain a consistent pressure in the system. It operates at a lower pressure than the main fire pump and is responsible for compensating for minor pressure fluctuations.

Backup Power: Fire pumps are often equipped with backup power sources, such as generators, to ensure their operation even during power outages.

Testing and Maintenance: Regular testing and maintenance of the fire pump are essential to ensure its reliability. This includes exercising the pump periodically, inspecting for wear and tear, checking the controller's functionality, and maintaining clear access to the pump and its components.

Overall, the fire pump's role is to boost water pressure to the required level for effective firefighting, ensuring that an adequate water supply is available to control or suppress fires in a timely manner.

If a fire pump encounters a blockage, it's important to address the situation promptly to ensure the pump's proper functioning during emergencies. A fire pump is a critical component of a fire protection system, and any obstruction in its operation could potentially compromise the safety of a building or facility. Here's what you should do if the fire pump encounters a blockage:

Safety First: Before attempting any actions, ensure that you're following safety protocols. If the blockage is causing any immediate danger, evacuate the area and contact the appropriate personnel, such as the fire department or facility management.

Stop the Pump: If it's safe to do so, stop the fire pump immediately to prevent any further damage or complications caused by the blockage.

Identify the Source: Identify the source of the blockage. It could be debris, foreign objects, or some other obstruction that's impeding the pump's operation. Carefully inspect the pump and the surrounding area to determine the nature of the blockage.

Isolate the Problem: If possible, isolate the section of the pump or piping where the blockage is occurring. This might involve shutting off certain valves or disconnecting specific components. Be sure to follow proper procedures and use any necessary protective equipment.

Clear the Blockage: Depending on the nature of the blockage, you might need to remove debris, clean out the affected area, or dislodge the obstruction. Use appropriate tools and methods, and be cautious not to cause any further damage to the pump or its components.

Inspect for Damage: After clearing the blockage, inspect the pump and its components for any signs of damage that might have been caused by the blockage or removal process. If there's damage, it might need to be repaired or replaced before the pump can be put back into service.

Restart and Test: Once you're confident that the blockage has been properly cleared and any necessary repairs have been made, you can restart the pump and conduct a series of tests to ensure that it's functioning correctly. Monitor the pump's operation closely during these tests.

Maintenance and Prevention: To prevent future blockages, make sure that regular maintenance is conducted on the fire pump and its associated components. This might include routine inspections, cleaning, and proactive measures to keep debris and foreign objects away from the pump intake.

Documentation and Reporting: Keep thorough records of the incident, including the cause of the blockage, actions taken to address it, and any repairs or maintenance performed. This documentation can be valuable for future reference and for compliance with safety regulations.

If you're not experienced with fire pump systems or if the blockage seems complex or potentially hazardous, it's best to involve professionals who are trained in fire protection systems and maintenance. Remember that the safety of personnel and the proper functioning of the fire protection system should always be top priorities.

If a fire pump is unable to absorb water, it can significantly impair the effectiveness of the entire fire protection system. Several reasons could contribute to this issue:

Air Lock or Air Binding: Air trapped in the suction piping or pump casing can prevent the pump from priming and drawing in water. This can happen during system startup or after maintenance if air is not properly vented from the system.

Suction Piping Issues: If the suction piping is not designed or installed correctly, it can cause problems like inadequate flow or air pockets that prevent water from reaching the pump. Piping should be sized appropriately, free from obstructions, and equipped with proper fittings.

Insufficient Water Supply: If the water source, such as a tank, reservoir, or water supply line, doesn't have enough water or is unable to provide adequate pressure, the fire pump might not be able to draw water effectively.

Clogged or Blocked Suction Strainer: A clogged or blocked suction strainer or screen can prevent water from entering the pump. Regular cleaning and maintenance of the strainer are essential.

Suction Lift Too High: If the fire pump's suction lift (vertical distance from the water source to the pump) is too high, it can lead to difficulties in priming and water absorption.

Priming System Failure: Fire pumps often require a priming system to ensure that air is evacuated from the suction line. If the priming system is malfunctioning or not properly used, it can lead to difficulty in water absorption.

Loss of Water Seal: Some fire pump systems utilize a water seal to prevent air from entering the pump. If this seal is lost due to leakage or incorrect installation, air can enter the pump casing, preventing water absorption.

Suction Valve Closed: If the suction valve on the fire pump or within the piping system is closed or partially closed, it will obstruct water flow into the pump.

Piping Leaks: Leaks in the suction piping can create a loss of pressure and result in air being drawn into the system instead of water.

Cavitation: If the pressure at the pump inlet drops too low due to a high demand for water, the water can vaporize and create bubbles, leading to cavitation. This disrupts water flow and can prevent water absorption.

Pump Mechanical Issues: Mechanical problems with the pump, such as damaged impellers or bearings, can reduce its ability to create suction and draw in water.

Improper Sealing: Gaskets, seals, and joints in the pump and piping should be properly sealed to prevent air leaks that could inhibit water absorption.

Valve Misalignment: If the piping and valves leading to the pump are not aligned correctly, it can hinder the flow of water.

Electrical or Control Issues: Problems with the pump's electrical components or control system could prevent it from starting or operating properly.

Addressing these issues often requires a combination of troubleshooting, maintenance, and potentially consulting with experts in fire pump systems. Regular testing, inspection, and maintenance are critical to ensuring that the fire pump is ready to operate effectively in case of an emergency.

Insufficient fire pump flow can have various underlying causes, and addressing these issues is critical to ensure the fire protection system's effectiveness in an emergency. Here are some common reasons for insufficient fire pump flow:

Inadequate Water Supply: The fire pump relies on a sufficient and reliable water supply source. If the water supply is insufficient due to low pressure from the main source or a limited water volume, the fire pump may not be able to generate the required flow.

Blocked or Restrictive Piping: Any obstructions, debris, or restrictions in the piping system leading to the fire pump can hinder water flow. This can be caused by sediment buildup, debris, or improperly designed piping.

Valve Issues: Closed or partially closed valves in the fire pump system, including inlet and outlet valves, can restrict water flow and reduce the pump's effectiveness.

Pump Cavitation: Cavitation occurs when the pump's inlet pressure drops too low, causing the water to vaporize and form bubbles. These bubbles collapse when they enter high-pressure areas of the pump, causing damage and reducing flow efficiency.

Air in the System: Air trapped in the pump or piping can disrupt water flow and cause reduced pump efficiency. Proper venting and air release mechanisms are essential to prevent this issue.

Pump Impeller Damage or Wear: Damage or wear to the pump impeller can decrease its ability to generate the necessary flow. This can result from cavitation, debris, or other factors.

Motor or Drive Issues: Problems with the motor or drive system, such as incorrect wiring, faulty components, or motor overheating, can lead to reduced pump performance.

Jockey Pump Malfunction: A jockey pump is used to maintain system pressure during non-emergency situations. If the jockey pump is not functioning properly, it can lead to inadequate pressure and flow when the fire pump activates.

Incorrect Pump Sizing: If the fire pump was not sized correctly for the building's fire protection demands, it might not be able to provide the required flow.

Electrical Problems: Issues with the electrical supply, such as voltage fluctuations or electrical failures, can impact the motor's performance and subsequently reduce flow.

Piping Leaks: Leaks in the piping system can reduce pressure and flow before the water even reaches the fire pump.

Pressure Relief Valve Issues: If the pressure relief valve is not functioning correctly, it could be releasing excess pressure prematurely, affecting the system's overall pressure and flow.

Maintenance and Lubrication: Insufficient maintenance, lack of proper lubrication, or wear on bearings and other moving parts can reduce pump efficiency and flow.

System Design or Installation Problems: Incorrect system design or improper installation can lead to flow problems, such as undersized pipes, inadequate valving, or improper pump placement.

Obstructed Water Source: If the water source (such as a tank or reservoir) is obstructed, contaminated, or drained, it can impact the fire pump's ability to draw water.

Regular inspection, maintenance, and testing of the fire pump system are essential to identify and address these issues before they compromise the system's performance during an actual fire emergency. Consulting with fire protection experts and adhering to relevant codes and standards is crucial for ensuring a reliable and effective fire protection system.

Overheating of a fire pump's supporting power motor can occur due to various factors, and addressing these issues is crucial to ensure the reliable operation of the fire pump system. Here are some common reasons for overheating:

Overloading: If the fire pump motor is operating beyond its rated capacity due to excessive demand, it can lead to overheating. This could happen if there's a higher flow rate requirement than the pump is designed for, or if there's a blockage or restriction in the system that causes the pump to work harder.

Voltage Fluctuations: Voltage variations can affect the motor's performance. Low voltage can cause the motor to draw more current to compensate for the reduced power supply, leading to overheating. High voltage can also increase the motor's temperature due to increased losses.

Inadequate Cooling: Proper cooling is essential to prevent overheating. If the cooling mechanisms such as fans, heat sinks, or ventilation are not functioning properly or are blocked, the motor can overheat.

Poor Lubrication: Bearings and other moving parts in the motor require proper lubrication. Insufficient lubrication can increase friction and heat generation, potentially leading to overheating.

Motor Imbalance: Imbalances in the motor, such as misalignment of the shaft or unbalanced loads, can lead to excessive vibrations and heat buildup.

Ambient Temperature: If the environment in which the fire pump motor operates is already hot, it can contribute to overheating. This is especially important to consider in areas without adequate ventilation or cooling.

Insulation Degradation: Electrical motors have insulation systems that can degrade over time due to factors like moisture, contaminants, and high temperatures. Insulation breakdown can lead to increased electrical resistance, causing the motor to heat up.

Frequency of Operation: Frequent starts and stops can cause thermal stress on the motor, leading to overheating. This can occur if the fire pump system experiences rapid cycling.

Winding Issues: Faults in the motor windings, such as short circuits or open circuits, can result in higher current draw and subsequent overheating.

Clogged Air Filters: If the motor's air intake filters are clogged, it can impede air circulation and cooling.

Inadequate Sizing: If the motor was incorrectly sized for the load it needs to handle, it might be working at a higher load percentage than intended, leading to overheating.

Age and Wear: Older motors might experience decreased efficiency and increased heat generation due to wear and tear of internal components.

To prevent overheating of the fire pump's supporting power motor, regular maintenance, inspection, and testing are essential. Monitoring motor operating conditions and addressing any anomalies promptly can help identify and mitigate potential issues before they escalate. It's important to consult with qualified professionals who are experienced with motor systems and fire pump installations to ensure proper operation and safety.

Commissioning of a fire pump water supply system is a crucial process to ensure that the system is properly installed, functional, and ready to operate effectively in the event of a fire emergency. This process involves thorough testing, inspection, and documentation to verify that all components and subsystems are working as intended. Here are the general steps involved in commissioning a fire pump water supply system:

Pre-Commissioning Preparation:

Review the system design and specifications to ensure all requirements are understood.
Verify that all necessary permits and approvals are in place.
Ensure that all equipment and components are installed according to the manufacturer's guidelines and applicable codes and standards.
Functional Testing:

Test all electrical and mechanical components of the fire pump, including motors, controllers, switches, and alarms.
Conduct a flow test to ensure the pump is delivering the required water flow rate.
Test the jockey pump (if applicable) for maintaining system pressure during non-emergency situations.
Test the main fire pump using various scenarios, including full load operation.
Pressure and Leakage Testing:

Perform pressure tests on the entire system to ensure that pipes, valves, and fittings can withstand the required operating pressures.
Check for any leaks in the system and address them as necessary.
Electrical Testing:

Inspect and test the electrical connections, wiring, and controls of the fire pump and associated components.
Verify that all electrical components are properly grounded and protected.
Alarms and Monitoring Systems:

Test all fire pump alarms, including high and low-pressure alarms, overcurrent alarms, and any other relevant alarms.
Ensure that monitoring and control systems are functional and capable of notifying personnel of any issues.
Backup Power Source Testing:

If the fire pump has a backup power source, such as a generator or uninterruptible power supply (UPS), test its functionality and switch-over mechanisms.
Documentation:

Keep detailed records of all tests performed, including results, dates, and any corrective actions taken.
Compile manufacturer's documentation, test reports, and other relevant information for future reference.
Verification:

Engage relevant authorities, such as fire departments or regulatory bodies, to verify that the system meets all legal and regulatory requirements.
Obtain necessary certifications and approvals.
Training:

Provide training to facility personnel on the operation, maintenance, and emergency procedures related to the fire pump water supply system.
Final Approval and Handover:

Once all tests are successfully completed, and any identified issues are resolved, the fire pump water supply system can be formally commissioned.
Obtain final approval from relevant parties before putting the system into service.
It's important to note that the commissioning process may vary based on local regulations, the complexity of the system, and the specific requirements of the facility. Therefore, it's recommended to work closely with experienced professionals who are knowledgeable about fire protection systems and commissioning processes.
