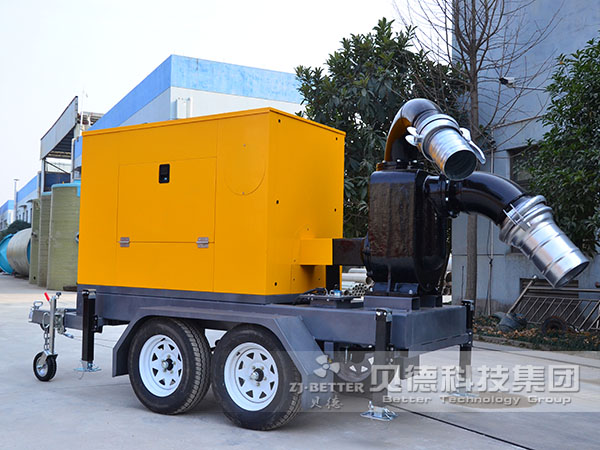

Emergency mobile fire pump
Apr 29, 2022
Share:
The emergency mobile fire pump adopts an integrated design, is durable, and is equipped with a vacuum auxiliary system. It has the characteristics of fast water absorption and high efficiency. Both the water inlet and outlet use quick connectors, which greatly shortens the time. flood control equipment. Flood control and drainage mobile pump truck, mobile diesel engine self-priming, mobile diesel engine water pump, trailer-type emergency drainage pump truck, 4-wheel mobile pump truck, combination of diesel engine and self-priming pump, which can be controlled manually or automatically. Diesel engine self-priming pump integrates self-priming and non-blocking sewage discharge. It adopts axial return and external mixing type, and through the unique design of pump body and impeller flow channel, it does not need to install bottom valve and tank like general self-priming clean water pump. It can divert water, and can absorb and discharge liquids containing large particles of solids and long fiber impurities. It can be used for municipal sewage discharge, flood control, drought relief, and emergency rescue, river pond aquaculture, light industry, papermaking, textile, food, chemical industry, electricity, fiber, pulp and mixed suspension, etc. Diesel engine self-priming pump for medium conveying. Compared with domestic similar products, the diesel engine self-priming pump has the characteristics of simple structure, good self-priming performance, strong sewage discharge capacity, energy saving, convenient use and maintenance, etc. The mobile pump truck has good mobility and simple operation, and has application market and development prospects.
2. Medium PH value cast iron material is 6-9, stainless steel is 2-13, lined with fluorine plastic 1-13
3. The medium weight does not exceed 1240kg/m3.
4. The self-suction height should not exceed the specified value of 4.5-5.5 meters (with vacuum assistance, it can be increased by 2~3) meters, and the total length of the suction pipe is ≤10 meters.
5. The diameter of the suspended particles is 50% of the diameter of the pump, and the fiber length is 5 times the diameter of the pump.
Applications:
1. Ambient temperature ≤ 50 ℃, medium temperature ≤ 80 ℃, special requirements up to 200 ℃.2. Medium PH value cast iron material is 6-9, stainless steel is 2-13, lined with fluorine plastic 1-13
3. The medium weight does not exceed 1240kg/m3.
4. The self-suction height should not exceed the specified value of 4.5-5.5 meters (with vacuum assistance, it can be increased by 2~3) meters, and the total length of the suction pipe is ≤10 meters.
5. The diameter of the suspended particles is 50% of the diameter of the pump, and the fiber length is 5 times the diameter of the pump.
