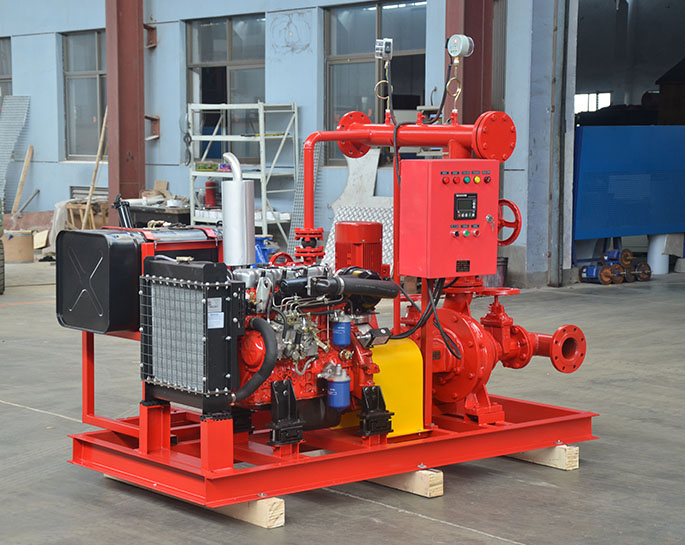

Common fire pump mechanical seal

Common mechanical seals used in fire pumps include:

1. Single Mechanical Seal: This is the most basic type of mechanical seal used in fire pumps. It consists of two primary sealing surfaces, one stationary and one rotating, that come into contact to create a seal. The stationary part is typically mounted on the pump casing, while the rotating part is connected to the pump shaft. Single mechanical seals are suitable for low to moderate pressure applications.

2. Double Mechanical Seal: A double mechanical seal consists of two sets of primary sealing surfaces separated by a barrier fluid. This design provides an extra layer of protection against leaks and is commonly used in high-pressure applications or when handling hazardous fluids. The barrier fluid helps to lubricate and cool the seals, enhancing their durability and performance.

3. Cartridge Mechanical Seal: Cartridge seals are pre-assembled units that contain all the necessary components of a mechanical seal in a single cartridge. They are convenient to install and replace, minimizing the need for complex adjustments and reducing downtime during maintenance. Cartridge seals are often used in fire pumps for their ease of use and reliability.

4. Balanced Mechanical Seal: In high-pressure applications, a balanced mechanical seal may be utilized. This type of seal incorporates additional design features to counteract the higher forces and pressures present in the pump. By balancing the hydraulic pressure acting on the seal faces, a balanced mechanical seal helps to minimize wear, extend seal life, and improve sealing performance.

It's important to note that specific fire pump manufacturers and applications may have their own preferred mechanical seals or variations of the above designs. Therefore, it is always recommended to refer to the manufacturer's specifications and guidelines for the appropriate mechanical seal to use in a particular fire pump.
