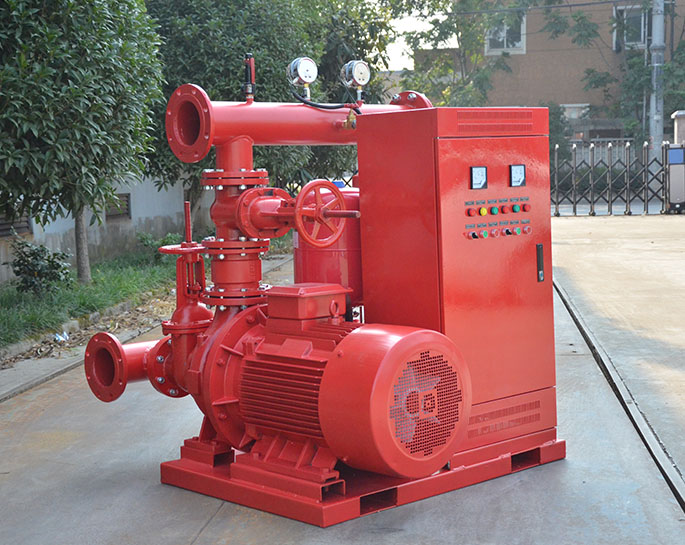

Analysis of Leakage Points of Mechanical Seals Used in Fire Pumps
Jul 03, 2023
Share:
Mechanical seals are commonly used in fire pumps to prevent leakage of the pumped fluid along the rotating shaft. While mechanical seals are designed to provide effective sealing, they can experience leakage under certain conditions. Here is an analysis of potential leakage points in mechanical seals used in fire pumps:
Primary Seal Faces: The primary seal faces are the main contact surfaces responsible for sealing the fluid. If there is damage or wear to the seal faces, such as scratches or grooves, it can lead to leakage. Factors that contribute to seal face damage include excessive heat, improper lubrication, and contamination.
Secondary Sealing Elements: Mechanical seals often incorporate secondary sealing elements such as O-rings or gaskets. Leakage can occur if these elements are damaged, incorrectly installed, or not compatible with the fluid being pumped. Improper compression or aging of the secondary sealing elements can also lead to leakage.
Seal Face Flatness and Parallelism: The seal faces should be flat and parallel to achieve an effective seal. Any deviation from the required flatness or parallelism can result in leakage. Factors that can affect seal face flatness include uneven wear, thermal distortion, or inadequate assembly techniques.
Seal Face Loading: Mechanical seals require sufficient loading to maintain the contact pressure between the seal faces. Inadequate loading can lead to a loss of contact and subsequent leakage. Conversely, excessive loading can cause excessive heat and wear on the seal faces, which may also result in leakage.
Lubrication and Cooling: Proper lubrication and cooling are essential for the reliable operation of mechanical seals. Insufficient lubrication can increase friction and heat, leading to seal face damage and leakage. Inadequate cooling, especially in high-temperature environments, can also affect the performance of the seal and contribute to leakage.
Environmental Factors: Environmental conditions can impact the performance of mechanical seals. Exposure to corrosive chemicals, abrasive particles, or extreme temperatures can degrade the seal faces and sealing elements, leading to leakage. Environmental factors should be considered when selecting the appropriate materials for the mechanical seal components.
Installation and Maintenance: Improper installation or maintenance practices can contribute to seal leakage. Inadequate alignment of the pump and motor, incorrect tightening of fasteners, or inadequate cleaning and inspection during maintenance can all affect the seal's performance.
To minimize leakage in mechanical seals used in fire pumps, it is crucial to adhere to proper installation procedures, follow recommended maintenance practices, and monitor the seals regularly for signs of wear or damage. Using high-quality mechanical seals that are compatible with the operating conditions and fluids being pumped can also help reduce the likelihood of leakage.
