Product introduction of EDJ fire pump set
Aug 08, 2022
Share:
Product description:

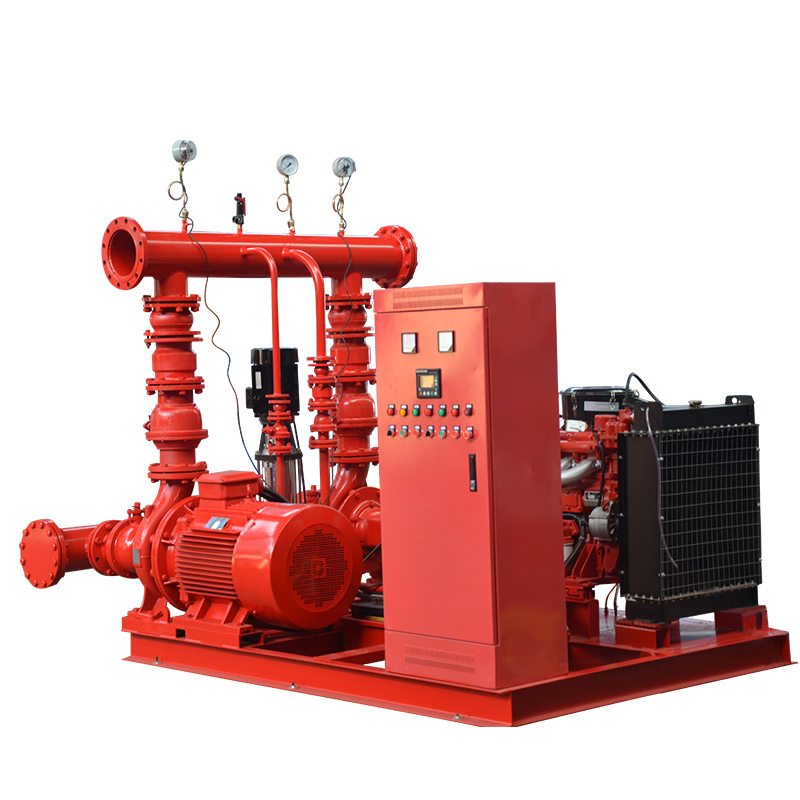

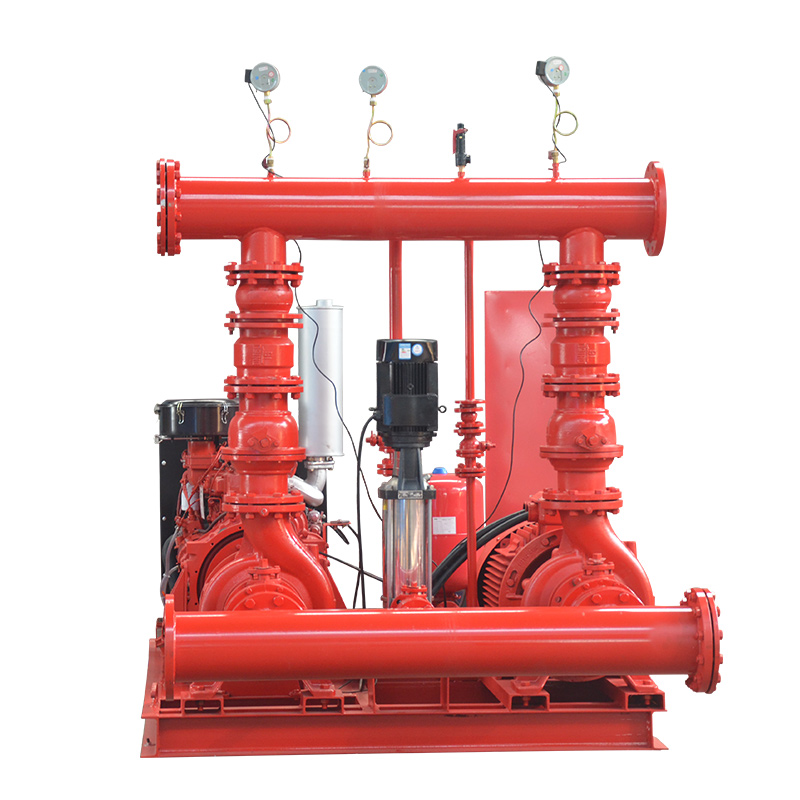

EDJ fire pump group consists of diesel engine fire pump, electric pump group and stabilized pump to form an automatic fire water supply system
1. Electric pump, single-stage pump, horizontal split pump, end-suction pump, multi-stage pump, the material is cast iron or stainless steel, and the impeller can be made of copper impeller
2. Diesel engine pump, the flow rate is the same as that of the electric pump. The diesel engine is connected by a highly elastic coupling or a universal joint to form a fire pump set. The set also includes fuel tanks, water tanks, fans, control panels and other components.
3. Stabilizer pump, horizontal or vertical, small flow, higher lift than electric pumps and diesel pumps
4. Control cabinet, automatic control of electric pump, diesel engine pump and stabilized pump, with overload, overcurrent protection
5. The accessories include check valve, gate valve, air pressure tank (0.6mpa, 1.0mpa, 1.6mpa), pressure gauge, pressure sensor, common inlet and outlet pipeline, soft joint, flange and common base.
![](/d/images/4.jpg)
Product Usage:
The equipment is suitable for fire water supply and emergency water supply in various occasions such as warehouses, docks, airports, petroleum, chemical, factories, power plants, liquefied gas, textiles, ships, cruise ships, etc.
![](/d/images/5.jpg)
Working conditions:
Altitude: ≤ 1000m;
Ambient temperature: +5 °C ~ +40 °C;
Relative humidity: <= 90%.
Specific parameters

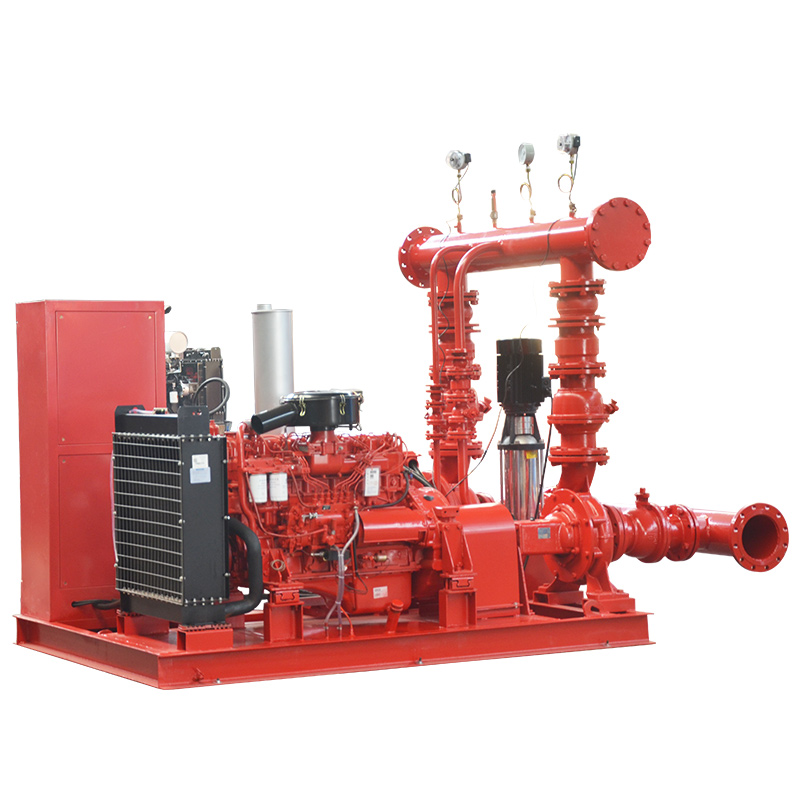

It is composed of electric pump, diesel engine pump and stabilized pump group.
![](/d/images/second%20one%2C%20EDJ.jpg)
Working status:
main pump (electric pump) + backup pump (diesel and pump) + stabilizer pump
Flow: 100, 150, 200, 300, 400, 500, 750, 1000...GPM , Head: 4, 5, 6, 8, 10... Bar.
Air pressure tank: 25, 50, 75, 100...liters, the pressure is 0.6mpa, 1.0mpa, 1.6mpa, according to the pump head
